Axial Plastic Silicon Super Fast Recovery Rectifier Diode SF68 6A 600V R 6

Product Categories
Changzhou Trustec Company Limited
Contact Now

Axial Plastic Silicon Super Fast Recovery Rectifier Diode SF68 6A 600V R 6

Brand Name : trusTec

Model Number : SF68

Certification : ROHS

Place of Origin : China

MOQ : 0.5K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 0.5K PCS per tape & box, 5K PCS per carton.

Type : Super Fast Rectifier Diode

Max. forward current : 6A

Max. reverse voltage : 600V

Max. forward voltage : 1.7V

Max. reverse current : 10μA

Ifsm : 150A

Package : R-6

Operating temperature : -65°C ~ 150°C

Contact Now

SF61 THRU SF68

SUPER FAST RECTIFIERS
Reverse Voltage - 50 to 600 Volts Forward Current - 6.0 Ampere
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

SYMBOLS
SF61
SF62
SF63
SF64
SF65
SF66
SF68
 UNITS
Maximum repetitive peak reverse voltage
VRRM
 50 100 150 200 300 400 600
VOLTS
Maximum RMS voltage
VRMS
 35 70 105 140 210 280 420
VOLTS
Maximum DC blocking voltage
VDC
 50 100 150 200 300 400 600
VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃
I(AV)
 6.0
Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
IFSM
 150
Amps
Maximum instantaneous forward voltage at 6.0A
 VF 0.95 1.25 1.7
Volts
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃10
IR

10.0

50.0

 µA
Maximum reverse recovery time (NOTE 1)
trr
 35 ns
Typical junction capacitance (NOTE 2)
CJ
 100.0 50.0 pF
Typical thermal resistance (NOTE 3)
RθJA
 20.0 ℃/W
Operating junction and storage temperature range
TJ,TSTG
-55 to +150
 ℃

Note:
1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted
FEATURES
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Super fast switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guarantteed:
260 C/10 seconds,0.375”(9.5mm) lead length,
5 lbs. (2.3kg) tension
MECHANICAL DATA

Case: JEDEC R-6 molded plastic body
Terminals: Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight :0.072 ounce, 2.05 grams
DIMENSION
Axial Plastic Silicon Super Fast Recovery Rectifier Diode SF68 6A 600V R 6

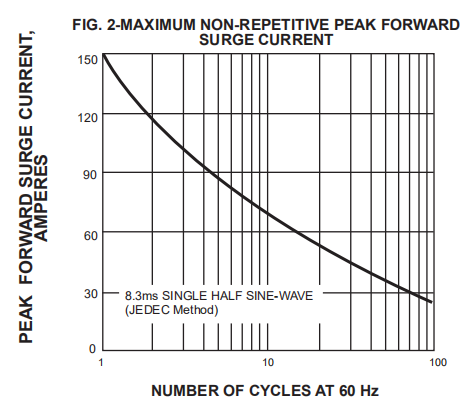

RATINGS AND CHARACTERISTIC CURVES
Axial Plastic Silicon Super Fast Recovery Rectifier Diode SF68 6A 600V R 6
Axial Plastic Silicon Super Fast Recovery Rectifier Diode SF68 6A 600V R 6
Axial Plastic Silicon Super Fast Recovery Rectifier Diode SF68 6A 600V R 6
Axial Plastic Silicon Super Fast Recovery Rectifier Diode SF68 6A 600V R 6
Axial Plastic Silicon Super Fast Recovery Rectifier Diode SF68 6A 600V R 6
Axial Plastic Silicon Super Fast Recovery Rectifier Diode SF68 6A 600V R 6
