1N5817 1N5818 1N5819 Schottky Diode IN5817 IN5818 IN5819 Plastic Case

  • 1
  • 2
  • 3

Brand Name : trusTec

Model Number : 1N5817 THUR 1N5819

Certification : ROHS

Place of Origin : China

MOQ : 5K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 5K PCS per tape & box, 50K PCS per carton.

Max. reverse voltage : 40V

Type : Schottky Diode

Package type : Through Hole

Max. forward current : 1A

Max. forward voltage : 0.6V

Package : DO-41

Contact Now

1N5817 1N5818 1N5819 schottky diode IN5817 IN5818 IN5819 Plastic Case
1N5817 THRU 1N5819
SCHOTTKY BARRIER RECTIFIERS
Reverse Voltage - 20 to 40 Volts Forward Current - 1.0 Ampere

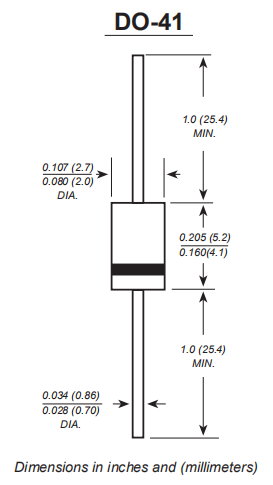

Dimension

1N5817 1N5818 1N5819 Schottky Diode IN5817 IN5818 IN5819 Plastic Case

Product Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0
Metal silicon junction,majority carrier conduction
Guardring for overvoltage protection
Low power loss,high efficiency
High current capability,low forward voltage drop
High surge capability
For use in low voltage,high frequency inverters, free wheeling,and polarity protection applications
High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension
Mechanical Data
Case: JEDEC DO-41 molded plastic body
Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight:0.012 ounce, 0.33 grams
MAXIMUM RATINGS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for current capacitive load derate by 20%.
SYMBOLS 1N5817 1N5818 1N5819 UNITS
Maximum repetitive peak reverse voltage
VRRM
20
30
40
VOLTS
Maximum RMS voltage
VRMS
 14 21 28
VOLTS
Maximum DC blocking voltage
VDC
20
30
40
VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TL=90 ℃
I(AV)
1.0
 Amp
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
IFSM
 25.0 Amps
Maximum instantaneous forward voltage at 1.0A
VF
0.450
0.550
0.600
 Volts
Maximum DC reverse current TA=25 ℃
at rated DC blocking voltage TA=100 ℃
IR
0.5
10.0
 mA
Typical junction capacitance (NOTE 1)
CJ
110.0
 pF
Typical thermal resistance (NOTE 2)
RθJA
50.0
 ℃/W
Operating junction and storage temperature range
TJ,TSTG
-65 to +125
 ℃
Note:
1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

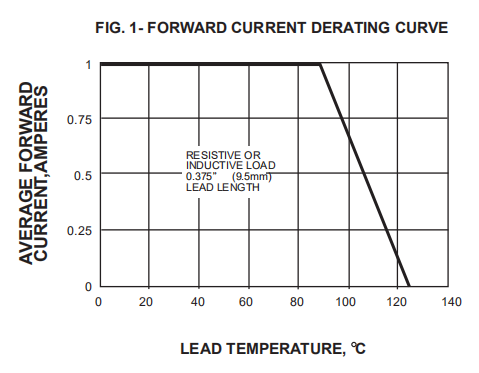

CHARACTERISTIC CURVES
1N5817 1N5818 1N5819 Schottky Diode IN5817 IN5818 IN5819 Plastic Case
1N5817 1N5818 1N5819 Schottky Diode IN5817 IN5818 IN5819 Plastic Case
1N5817 1N5818 1N5819 Schottky Diode IN5817 IN5818 IN5819 Plastic Case
1N5817 1N5818 1N5819 Schottky Diode IN5817 IN5818 IN5819 Plastic Case
1N5817 1N5818 1N5819 Schottky Diode IN5817 IN5818 IN5819 Plastic Case
1N5817 1N5818 1N5819 Schottky Diode IN5817 IN5818 IN5819 Plastic Case
