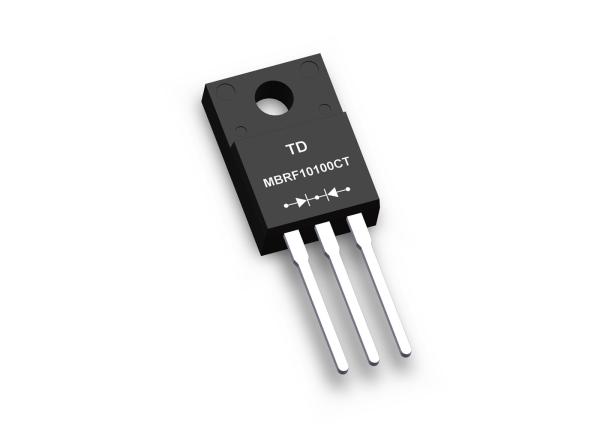

Dual Schottky Barrier Rectifier Diode 10A 100V 20A 200V Mbrf10100ct MBRF20150CT

Name: Dual Schottky Barrier Rectifier Diode 10A 100V 20A 200V Mbrf10100ct MBRF20150CT
Brand: trusTec
Price: 1 USD

Wholesale Dual Schottky Barrier Rectifier Diode 10A 100V 20A 200V Mbrf10100ct MBRF20150CT from china suppliers

Brand Name : trusTec

Model Number : MBRF10100CT

Certification : ROHS

Place of Origin : China

MOQ : 1K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 50 PCS per tube, 1K PCS per box, 5K PCS per carton.

Type : Dual Schottky Diode

Max. reverse voltage : 100V

Max. forward current : 10A

Ifsm : 125A

Max. forward voltage : 0.85V

Package : ITO-220AB

Contact Now

Plastic Case Dual Schottky Barrier Rectifier Diode 10A 20A 100V 200V MBRF10100CT MBRF20150CT

MBRF1020CT THRU MBRF10200CT

SCHOTTKY BARRIER RECTIFIERS

Reverse Voltage - 20 to 200 Volts Forward Current - 10 Ampere

Dual Schottky Barrier Rectifier Diode 10A 100V 20A 200V Mbrf10100ct MBRF20150CT

Product Features

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Metal silicon junction,majority carrier conduction

Low power loss,high efficiency

Low forward voltage drop, high current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.25 ”(6.35mm) from case

For use in low voltage, high frequency inverters, free

wheeling, and polarity protection applications

Guard ring for over voltage protection

Mechanical Data

Case: JEDEC ITO-220AB molded plastic

Terminals: Leads, solderable per MIL-STD-750,

Method 2026

Polarity: As marked

Mounting Position: Any

Weight:1.74 grams

MAXIMUM RATINGS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	MBR 1020 CT	MBR 1030 CT	MBR 1040 CT	MBR 1050 CT	MBR 1060 CT	MBR 1070 CT	MBR 1080 CT	MBR 1090 CT	MBR 10100 CT	MBR 10150 CT	MBR 10200 CT	UNITS
Maximum repetitive peak reverse voltage	VRRM	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum RMS voltage	VRMS	14	21	28	35	42	49	56	63	70	105	140	VOLTS
Maximum DC blocking voltage	VDC	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1)	I(AV)	10.0											Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	150.0											Amps
Maximum instantaneous forward voltage at 5.0A	VF	0.7			0.8		0.85					0.95	Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	0.1											mA
	IR	15											mA
Typical junction capacitance (NOTE 1)	CJ	500											pF
Typical thermal resistance (NOTE 2)	RθJC	4											℃/W
Operating junction temperature range	TJ,	-65 to +150											℃
Storage temperature range	TSTG	-65 to +150											℃

Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to case.

CHARACTERISTIC CURVES
